Design Your
Precision Motion System

First time building a gantry or linear actuator? Our interactive configurator makes it easy. All systems use proven NEMA 23 motors on rugged 8020 frames.

Lead Screw Driven
0.05–0.10 mm Positioning
HGW15CC Rails
3060 8020 Frame
Built in-house in the USA • 100% Rebuildable
ACTUAL BUILT SYSTEMS

See Exactly What You're Getting

Real photos of our NEMA 23 lead screw driven motion systems. Built on 3060 8020 extrusion with HGW15CC rails — the same hardware you'll receive.

100% Rebuildable
Every single part is standard and replaceable. No proprietary components. Designed to be serviced and rebuilt for decades.

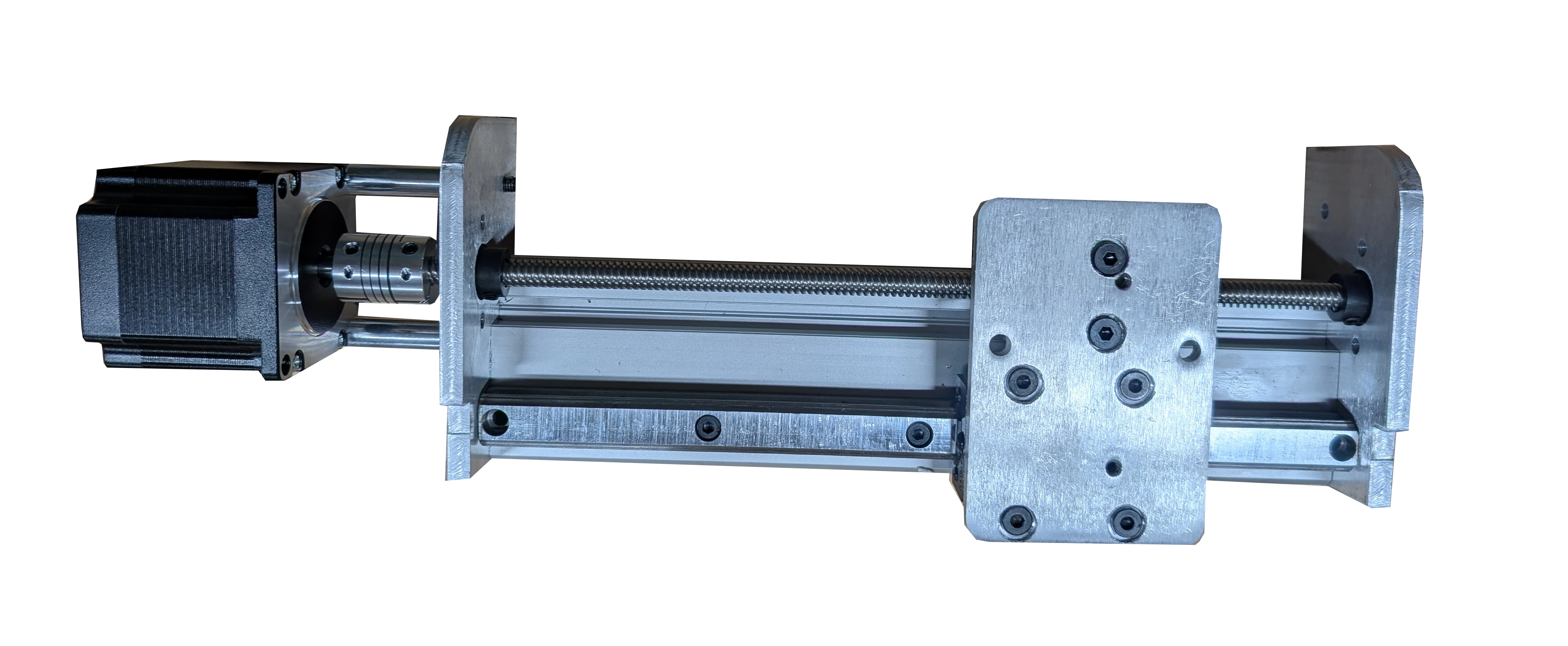

Top view of NEMA 23 lead screw driven linear actuator and gantry system
TOP VIEW
Top View

Clear overhead view showing the precision lead screw, carriage assembly, and HGW15CC rail mounting on the 8020 frame.

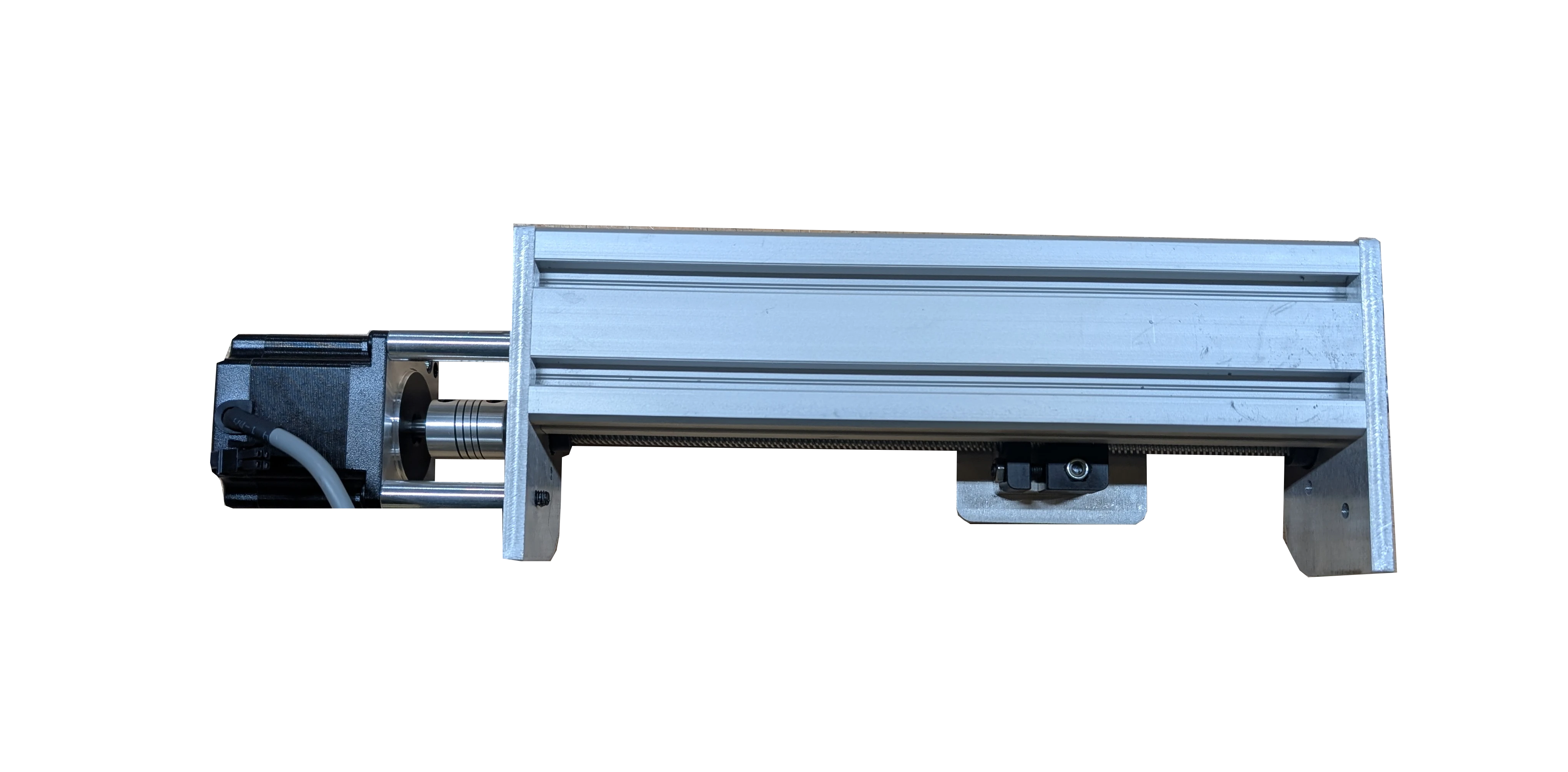

Bottom view of the 8020 frame and motion system mounting
BOTTOM VIEW
Bottom View

Underside perspective highlighting the rugged 3060 8020 aluminum extrusion frame and solid mounting points.

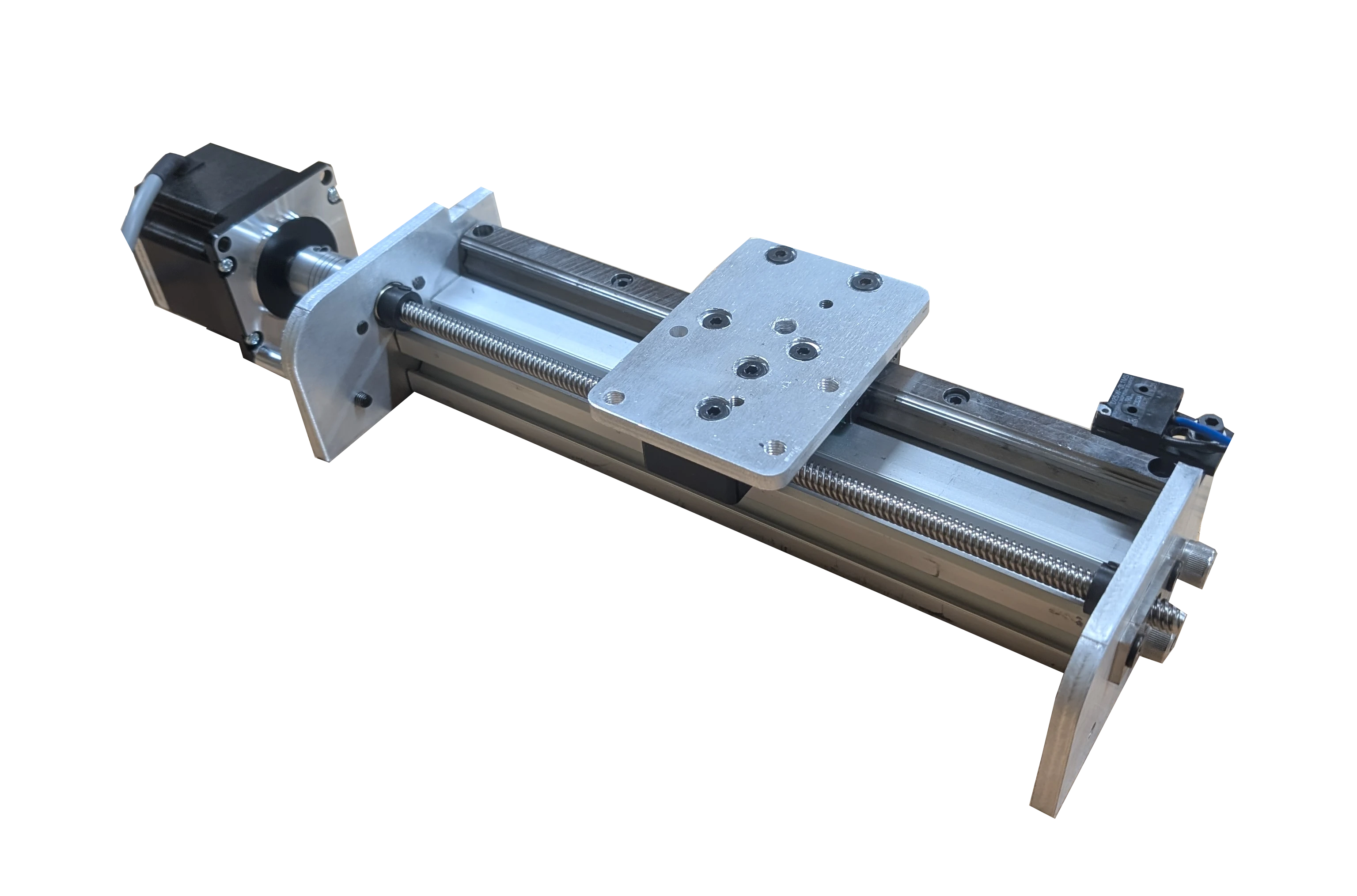

Top and side angled view of the NEMA 23 gantry and linear actuator system
TOP + SIDE
Top & Side View

Angled perspective that shows the full NEMA 23 motor, rail system, and overall build quality of the motion platform.

All systems are hand-built in Breeding, Kentucky • 100% rebuildable design

1
2
3
4
STEP 1 OF 4

What are you building?

Choose the motion platform that matches your application

RECOMMENDED FOR FIRST BUILD

Single-Axis Linear Actuator

Precision push, pull, or positioning. Ideal for dispensing, pressing, inspection stages, and simple automation.

Most popular starting point →

Multi-Axis Gantry System

XY or XYZ motion for pick-and-place, vision inspection, 3D dispensing, assembly, and complex automation paths.

For advanced positioning tasks →
Select an option above to begin
STEP 2 OF 4

Choose your stroke length

All lengths use the same high-quality components. Pick what fits your workspace.

Live Motion System Preview
Select type above to see your build
Current Length
500 mm
LEAD SCREW
HGW15CC
3060 8020 ALUMINUM FRAME
Motor End
To scale visualization
Stroke End
Standard Stroke Lengths
Custom Length
200 mm — 3000 mm supported
mm
LIVE PERFORMANCE DASHBOARD
Select a length above to see real-time calculations
STEP 3 OF 4

Configure your system

Fine-tune orientation and add the accessories you need

STEP 4 OF 4

Review & Request Quote

Everything looks good? Send this configuration to our engineers for pricing and lead time.

Your Custom Motion System
Contact Information

Our engineers will review your build and respond within 24 hours with pricing, lead time, and any recommendations.

First time with linear motion?

These systems are designed to be approachable. Every unit ships fully assembled and tested with clear documentation.

Proven Components
HGW15CC rails and lead screws deliver reliable 0.05–0.10 mm positioning accuracy day after day.
Easy Integration
Built on standard 3060 8020 extrusion — mount anywhere with T-nuts and brackets.
Real Human Support
Talk to the engineers who design and build these systems. (720) 237-4635
