Bottle Fillers Built in Breeding, Kentucky
RM
Rocky Mountain Bottle Fillers & Automation
Large-format tabletop bottling equipment

12x29 Matrix
Bottle Filler

The large-format tabletop filler. It runs double the bottles of the 12x12 every cycle and still fits on a bench.

Starting at
$9,980
One pump and nozzle. Each extra pump head is $1,900.

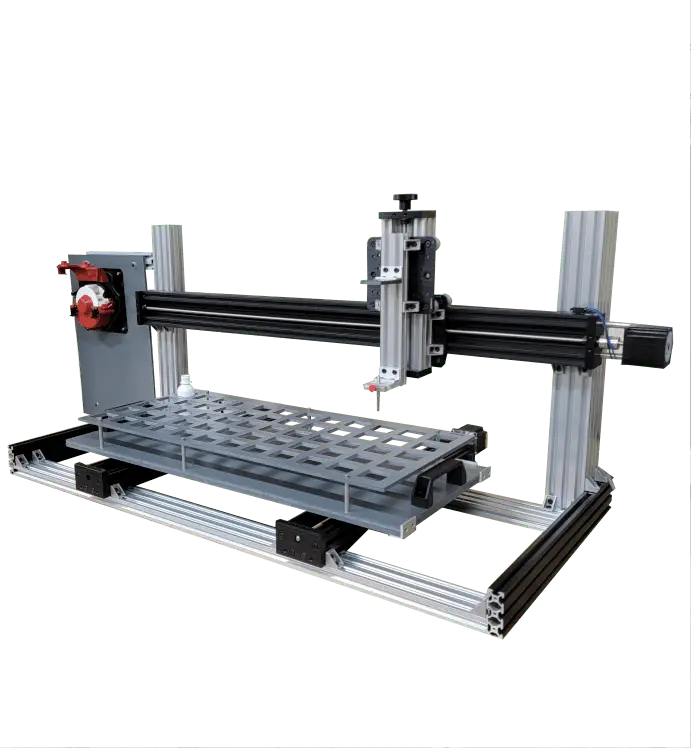

12x29 Matrix bottle filler with two pumps filling a tray of amber dropper bottles
What you get

Bottling equipment for bigger runs

12 x 29 inch filling area

Double the bottles of the 12x12 on every cycle.

Multiple pump options

Peristaltic, HighLo, syringe and micro dosing pumps, matched to your product.

Add nozzles and pumps

Start with one filling head and add up to six as your volume grows.

Open, programmable system

The software grows with you. A few simple variables set the tray, the fill and the speed.

Quick changeovers

Product only touches the holding tank, tubing and nozzle. Change the tubing and nozzle for a full line clear.

Hot and cold fills

Fill hot or cold products. Tubing is rated for over 200°F.

About the 12x29 Matrix bottle filler

The 12x29 is the same Matrix machine with a longer bed. One operator loads a tray, presses start and caps the last tray while this one fills.

More bottles per tray means fewer tray changes, which is where the output comes from. Add pump heads and the machine fills several bottles at every stop.

It is well suited to bottles of 16 oz and under, and it uses the same pumps, tubing and software as the 12x12, so a second machine needs no retraining.

12x29 Matrix filler specifications

Product details

  • Plug-and-play design
  • Fits on a tabletop
  • 12 x 29 inch bottle filling area
  • Changeable FDA 3-A NSF tubing
  • Fast changeovers
  • Product only touches tubing and nozzle

Machine features

  • Pump sizes up to 6.5 LPM
  • Rated for low to high viscosity, 20,000+ cP
  • Replaceable industrial controls
  • Save unlimited fill settings
  • FDA food-grade tubing
  • Ramp fill speed up and down to stop splashing
  • Variable pump speed and volume
  • Reverse pumping for line clear and anti-drip
  • Includes a 10 to 15 inch control screen

Specifications

  • Footprint 43 x 20 in or 48 x 20 in
  • 120 VAC, 5 to 7 A depending on configuration
  • 30 to 60 lb depending on configuration
  • Tubing ID 1/4 in or 3/8 in depending on configuration
  • Designed and built in the USA
Watch it run

The 12x29 Matrix filler on video

Dispensing robot filling bottles with oil
Dispensing robot filling bottles with oil
Setting up trays to fill two bottle sizes
Setting up trays to fill two bottle sizes
Upgrading a Matrix filler from 2 pumps to 6
Upgrading a Matrix filler from 2 pumps to 6
Dispensing robot made in the United States
Dispensing robot made in the United States

More on the videos and tutorials page.

From customers

What owners say

“Yes, the new pump is flat-out amazing! I did some validation work after we spoke and I calculated that on a 1mL fill volume I was getting less than ½ of 1% variation over a span of 27 bottles. Just awesome!!”
ErikMedical company
“I’m 140,000 units into production and very happy w/ everything. Appreciate ya and look forward to coming back again soon for more of your work.”
TuckerTincture company
“Things are going well for us, and I’m interested in getting another paint filler robot / machine from you... the 12" x 29" Matrix Bottle Filler this time.”
TonyPaint filler

12x29 Matrix filler questions

How much does the 12x29 Matrix bottle filler cost?

The 12x29 Matrix starts at $9,980 with one pump and nozzle. Each extra pump head is $1,900, and 12x29 bottle trays are $325 each.

How is the 12x29 different from the 12x12?

The filling area is 12 x 29 inches instead of 12 x 12, so it runs double the bottles every cycle. The pumps, software and controls are the same.

How many pump heads can it take?

You can add up to six filling heads and nozzles.

How much space does it need?

The footprint is 43 x 20 inches or 48 x 20 inches depending on configuration.

Tell us what you fill.

We'll tell you which Matrix filler fits and what it costs.
