0"x29" Matrix Bottle Filler XL
Tabletop Bottle Filler Designed for Bigger Bottles
Table Top Bottle Filler
Small platform with a big output. This platform can run tons of different bottle sizes.
Multiple Pump Options
We offer many different pump heads and technology to fill your products.
Add multiple nozzles and pumps
Add up to 6 filling heads and nozzles.
Open system
Our software is made to grow with you. The platform is completely programmable using a few easy variables.
Quick Change Overs
Your Product only touches your holding tank, tubing, and nozzle. Just change your tubing and nozzle for a 100% line clear
Hot and Cold
Fill hot or cold products. Tubing is rated for over 200 F.
0" x 29"
Matrix Filler XL
Starting at $6780.00
[1 pump/booster pump/nozzle config]
Description

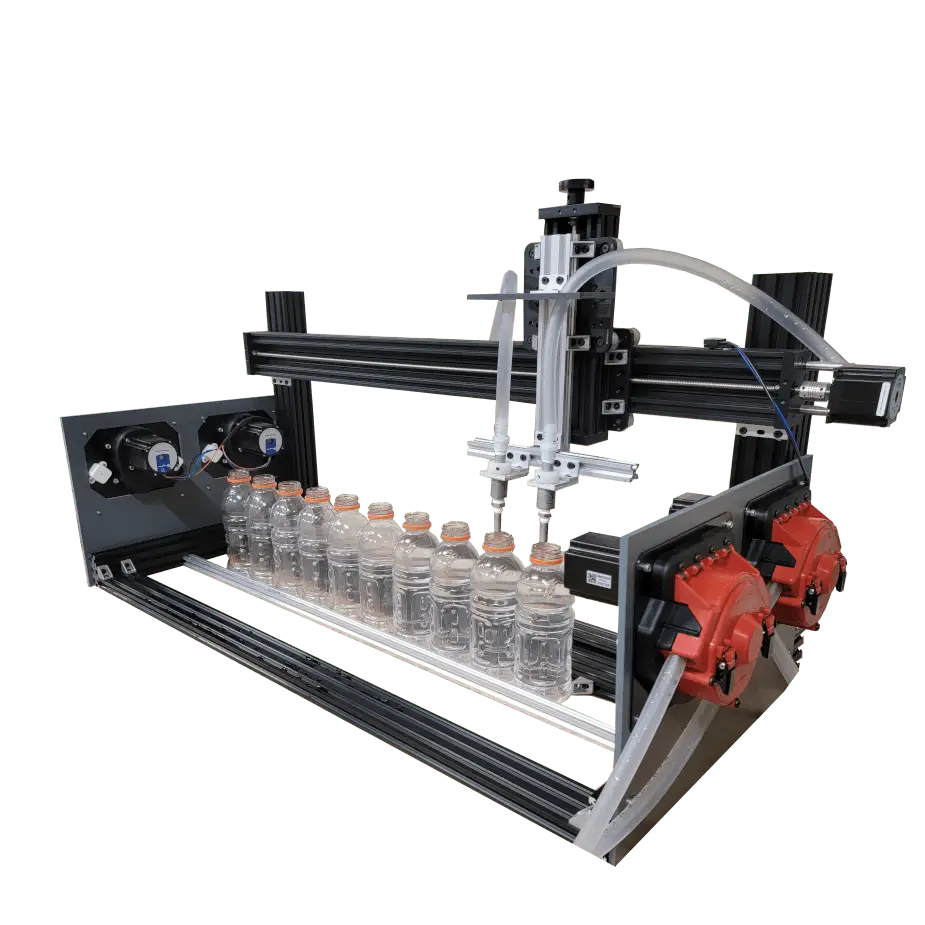

This tabletop bottle filler is perfect for bigger bottles. The operator will stack the bottles in a row and the machine will index from right to left, filling bottle. You can add up to 6 pump heads on this filler to fill up to 6 bottles at a time. We also build this in a stationary model if desired.
This bottle filler is a great option for businesses that need to fill large batches of bottles quickly and easily. It’s also a great choice for businesses that want to fill bottles of different sizes or shapes.
The tabletop bottle filler is made of high-quality materials and is built to last. It’s also easy to use and maintain.
If you’re looking for a reliable and efficient bottle filler, the tabletop bottle filler is a great option. Order yours today and see the difference it can make in your business.
- Easy to use
- Industrial controls
- Built and designed in the USA
- Add up to 6 nozzles and pumps
- Fill hot or cold products
- Patent Pending
Product Details
- Plug and play design
- Fits on a table top
- 12" x 12" Bottle filling area
- Changeable FDA 3-A NSF Tubing
- Fast change overs
- Product only touches tubing and nozzle
Machine Features
- Multiple pump sizes to fit your needs up to 6.5 LPM
- Rated for low and high viscosities (cP) 20000+
- Uses replaceable industrial controls
- Save unlimited fill settings
- FDA Food grade tubing
- Ramp up and down fill speed to stop splashing
- Variable pump speed
- Variable pump volume
- Reverse pumping for easy line clear and anti-drip
- Includes 10"-15" control screen
Specifications
- 21.5" x 20" or 33" x 20" foot print
- 120VAC 5-7AMP depending on configuration
- 30lbs to 60lbs depending on configuration
- Tubing ID size 1/4" or 3/8" depending on configuration
Add Ons
Add up to 6 digitally controlled pumps and nozzles.
Mix and match pumps to run a full spectrum of products. Configure the filler to fill multiple bottles at one time or fill up to 6 ingredients in one bottle.
Add a Diving nozzle.
If you want to fill thick fluids from the bottom up or to prevent splashing this is a great add on!Add custom bottle positioning trays.
We build all our products in house. Just send us your bottle samples or bottle drawings and have custom trays made to fit and fill your bottles. Program new trays at your facility without any code or special hardware.
XL Filling.
Need to fill 12oz or greater faster?
Maximize filling speeds up to 10L/min by adding additional pumps. We add these pumps in line to boost the filling output. Now you can fill fast and change over smoothly as there is no cleaning of internal parts in our pumps.
